The FZT-3T Automatic Hydraulic Stacking Table is a premium workshop solution specifically engineered for assembling and handling transformer iron cores.
With a robust 3,000 kg (3 Tons) load capacity, this platform allows operators to stack core laminations horizontally with ease. Once stacking is complete, the integrated hydraulic system smoothly tilts the entire assembly up to 90°, allowing overhead cranes or lifting equipment to safely and effortlessly remove the finished core. This equipment significantly reduces labor intensity, protects core geometry, and enhances assembly efficiency.
Smooth Hydraulic Tilting: Powered by a heavy-duty hydraulic station, the table transitions seamlessly from 0° to 90° without jerking, ensuring the integrity of the stacked core.
Stepless Speed Regulation: Features an adjustable tilting speed (up to 90°/min), allowing operators to precisely control the turnover process based on the weight and size of the core.
Flexible Column Design: The distance between supporting columns is fully adjustable, enabling the table to accommodate various transformer core dimensions.
Safe & User-Friendly: Designed with an intuitive control panel and high-precision linear guides for ultra-stable, reliable, and safe daily operation.
The FZT-3T core assembly line comprises 4 high-quality modules:
Heavy-Duty Main Frame: Rigid welded steel structure designed to eliminate deflection under maximum loads.
Premium Hydraulic Station: Delivers stable, leak-free power for the 90-degree tilting mechanism.
High-Precision Linear Guide: Ensures smooth, parallel movement during setup and operation.
Centralized Control Panel: Simple, ergonomic interface for safe and effortless operation.
Note: The parameters listed below represent the standard FZT-3T configuration. We offer fully customizable table sizes, weight capacities, and paint colors to align with your specific plant requirements.
| Parameter Item | Technical Specification (FZT-3T) |
| Max. Loading Capacity | 3,000 kg (3 Tons) |
| Table Dimension (L x W) | 1600 × 1400 mm |
| Table Working Height | 1000 mm |
| Max. Stacking Thickness | 900 mm |
| Tilting Mechanism | Hydraulic Driven |
| Tilting Speed | 90°/min (Stepless Speed Regulation) |
| Column Distance | Adjustable |
| Main Motor Power | 1.5 kW |
| Equipment Color | Optional / Customized to your factory standard |
| Warranty Period | 12 Months |

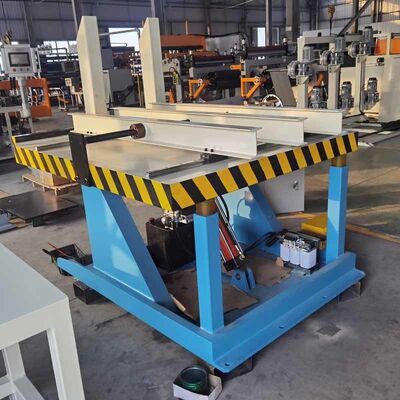

Fig 1: Transformer core stacking table FZT-3T's full view
Fig 2: Transformer core stacking table FZT-3T's hand held controller
