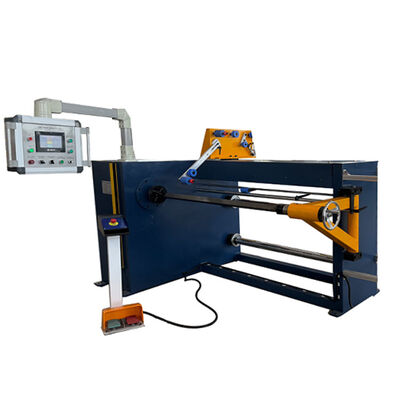

The Automatic Coil Winding Machine ZPX1000 is a high-precision wire winding machine designed for manufacturing transformer coils, electrical coils, and other similar winding products. It is specially developed for automatic winding of copper wire and aluminum wire with excellent accuracy and efficiency. Equipped with a powerful winding motor, servo-driven wire laying system, PLC control system, and HMI touch screen interface, this automatic transformer coil winding machine can complete wire winding and automatic wire arrangement processes with high precision. The servo-controlled wire guide ensures accurate wire positioning during winding, creating evenly arranged coils with consistent quality. With features such as soft starting, smooth operation, high torque output, and easy operation, the ZPX1000 wire winder is an ideal choice for transformer manufacturers requiring reliable and automated coil production equipment.
The transformer coil winding machine ZPX1000 is equipped with a servo motor-driven wire guide system, which automatically controls wire positioning during the winding process. This automatic laying function ensures:
The machine adopts an advanced PLC control system combined with a user-friendly HMI touch screen.
Operators can easily set and monitor:
The intelligent control system improves operation efficiency and ensures stable production performance.
The powerful winding drive system provides large torque output, allowing the machine to handle different copper and aluminum wire specifications.
The soft-start function and smooth acceleration reduce mechanical impact and help maintain stable wire tension during the entire winding process
The ZPX1000 automatic wire winding machine is suitable for winding:
It is widely used in transformer manufacturing plants and electrical equipment industries.
The following specifications represent the standard configuration of the Automatic Transformer Coil Winding Machine ZPX1000. Customized designs are available according to different coil sizes, wire specifications, and production requirements.
| Parameter | Specification |
|---|---|
| Model | ZPX1000 |
| Application | Transformer Coil Winding |
| Winding Material | Copper Wire / Aluminum Wire |
| Winding Shaft Center Height | 900 mm |
| Winding Shaft Size | 40 × 40mm |
| Maximum Winding Width | 1000 mm |
| Winding Motor Power | 5.5 kW |
| Winding Speed | 0–160 rpm |
| Maximum Flat Wire Size | 5 × 12 mm |
| Round Wire Diameter | Φ0.3–Φ5.0 mm |
| Maximum Coil Outer Diameter | Φ800 mm |
| Maximum Coil Capacity | 800 kg |
| Minimum Spread Pitch | 0.01 mm |
| Counting System | 5-digit Digital Counter |
| Counting Range | 0–9999.9 Turns |
| Control System | PLC + HMI Touch Screen |
The Automatic Wire Winding Machine ZPX1000 is mainly used for manufacturing:
It is suitable for transformer manufacturers looking for an automatic, accurate, and efficient coil winding solution.
The automatic transformer coil winding machine ZPX1000 works by rotating the winding shaft while the servo-controlled wire guide moves according to preset parameters. During operation, copper or aluminum wire is automatically fed and precisely positioned onto the coil former. The PLC control system coordinates the winding motor and wire laying system to ensure accurate winding turns, uniform coil layers, and stable production quality. The automatic wire laying function significantly improves winding efficiency compared with traditional manual wire arrangement methods.
A: The machine is designed for winding both copper wire and aluminum wire used in transformer coils and other electrical products.
A: Yes. The coil winding machine ZPX1000 uses a servo motor-driven wire guide system to automatically lay and position the wire during the winding process.
A: It can wind round wire from Φ0.3mm to Φ5.0mm and flat wire up to 5×12mm.
A: Yes. The PLC control system and HMI touch screen provide simple parameter setting and convenient operation.
A: Yes. We can customize the winding width, shaft size, capacity, voltage, and other specifications according to customer requirements.
