Model ZPX500-3 coil winding machine is a high-efficiency multi-wire winding equipment engineered for simultaneous production of three coils, with a maximum coil winding height up to 500 mm. This kind of coil winding machine adopts a servo-driven wire guide to achieve neat and automatic wire arrangement. Equipped with a PLC intelligent control system, the coil winding machine completes fully automatic winding of copper or aluminum wires once relevant parameters are preset. A foot switch is configured for convenient operation, which can start/stop the device and switch the spindle rotation direction flexibly. This winding machine delivers soft startup, stable operation, powerful output torque and superior automation performance.
Standard technical parameters of ZPX500-3 are listed as follows. Customized versions are available upon customers’ special requirements.
| Center Height | 900 mm |
|---|---|
| Max. Winding Diameter | 800 mm |
| Insulation Paper Unwinder | 1 set |
| Winding Shaft Dimension | 40×40×1500 mm |
| Round Wire Diameter | Ø0.3 ~ 5.0 mm |
| Max. Flat Wire Specification | 5×12 mm |
| Main Winding Motor Power | 7.5 kW |
| Winding Rotation Speed | 1 ~ 80 rpm |
| Control System | PLC |
| Counting Range | 0 ~ 9999.99 |

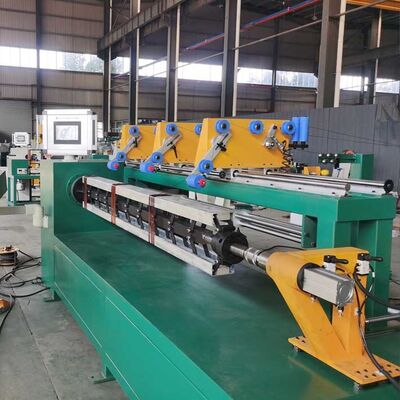

Fig 1: Automatic coil winding machine ZPX500-3's full view
Fig 2: Automatic coil winding machine ZPX500-3's coil stand
