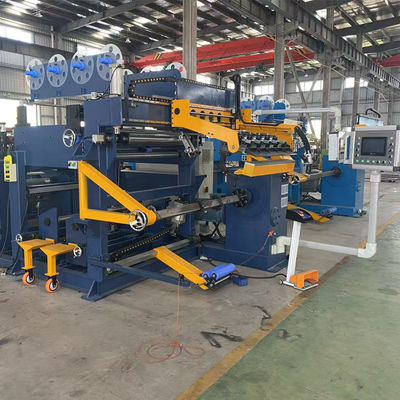

Low Voltage Transformer Foil Winding Machine Two Layers Foil Winder

Low Voltage Transformer Foil Winding Machine Two Layers Foil Winder

Description of transformer foil winding machine BRJ1000-2

Transformer foil Winding Machine is mainly used for the high precision production of dry type transformers and other similar products. The foil winding machine is specifically designed to handle conductive foils, such as copper or aluminum, ensuring tightly wound, uniform, and reliable coils. Key features include a robust PLC control system for exceptional accuracy, tension control to prevent foil damage, and user friendly programming for complex designs. The foil winding machine significantly enhances production efficiency, minimizes material waste, and improves the overall electrical performance and thermal stability of the final product.

Quick details of transformer foil winding machine BRJ1000-2

1)  Two foil decoilers

2)  Two insulation decoilers

3)  End-fill strip holder

4)  Cleaning device

5)  Foil deburring device

6)  Roll shear

7)  Edge alignment device

8)  TIG welding unit

Technical parameters of transformer foil winding machine BRJ1000-2

Typical standard specifications of transformer foil winding machine BRJ1000-2 are shown below and the foil winding machine can also be manufactured as requested.

Fig 1: Transformer foil winding machine BRJ1000-2's front view


Fig 2: Transformer foil winding machine BRJ1000-2's back view
