Silicon Steel CRGO Cut to Length Line Transformer Core Cutting Machine
Description of transformer core cutting machine HJX300-LLB
Transformer core cutting machine HJX300-LLB is a professional cutting machine. This kind of cutting machine can be used to cut silicon steel strip and the cut strip can be used in transformers and other similar products. The transformer core cutting machine can also cut the strip with decreasing length. With PLC and HMI, The transformer core cutting machine is with high automation. The transformer core cutting machine can be operated easily.
Quick details of transformer core cutting machine HJX300-LLB
l Cutting thickness 0.23 ~ 0.35mm
l Cutting width 40 ~ 300mm
l Sheet moving speed 120m/min
l Motor power 13kw
l Less than 0.02mm cutting burring
l 12 months warranty
Main parameters of transformer core cutting machine HJX300-LLB
The standard specifications of transformer core cutting machine HJX300-LLB is shown below and the cutting machine can also be manufactured as requested.
|
Sheet thickness |
0.23 ~ 0.35 mm |
|
Sheet width |
40 ~ 300 mm |
|
Cutting length |
350 ~ 9999 mm |
|
Feeding speed |
120 m/min |
|
Cutting angle accuracy |
±0.025° |
|
Cutting length accuracy |
±0.1 mm |
|
Cutting burring |
≤0.02 mm |
|
Installation capacity |
13 kw |

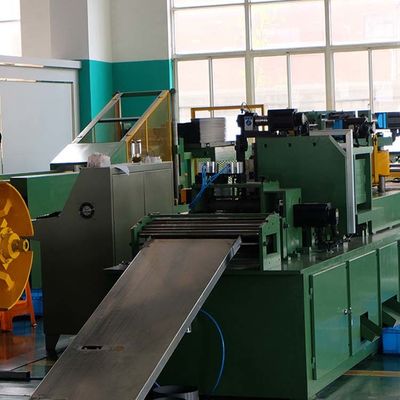

Fig 1: Transformer core cutting machine HJX300-LLB's full view
Fig 2: Transformer core cutting machine HJX300-LLB's side view
