Semi Automatic Wire Coiling Machine Electric Motor Coil Winding Machine
Description of motor coil winding machine MW500
Motor coil winding machine MW500 is semi automatic wire coiling machine. This kind of motor coil winding machine is mainly used to wind motor stator’s coils and other similar products. The motor coil winding machine is provided with a flange with diameter 500mm. Winding heads can be mounted on the flange for winding coils. The motor coil winding machine can be operated to stop or start running through a foot pedal. With a counter, the motor coil winding machine can count the number of turns when winding the wire. The motor coil winding machine features slow starting, smooth running and easy operation.
Details of motor coil winding machine MW500
l Winding copper or aluminium wire
l Maximum winding speed 200rpm
l Flange diameter 500mm
l Winding power 3kw
l One year warranty
Main Parameters
Typical standard specifications of motor coil winding machine MW500 are shown below and the motor coil winding machine can also be manufactured as requested.
|
Machine Height: |
1400mm |
|
Flange Diameter: |
Ø500mm |
|
Rotating Speed: |
0 ~ 200rpm |
|
Counting Range: |
0 ~ 9999.9 |
|
Max. Capacity: |
200KG |
|
Main motor Power: |
3KW |
|
Colour: |
customized |

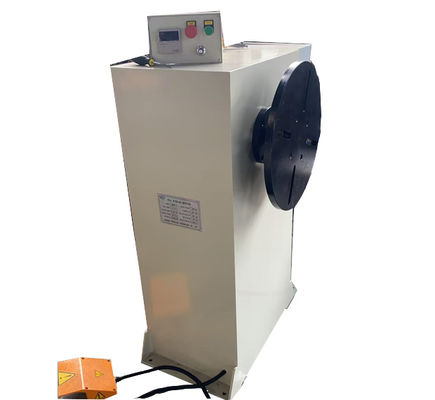

Fig 1: Motor coil winding machine MW500's full view
Fig 2: Motor coil winding machine MW500's control board
